Crucible steel in Malela keris

adamb · Yesterday, 06:28 AM

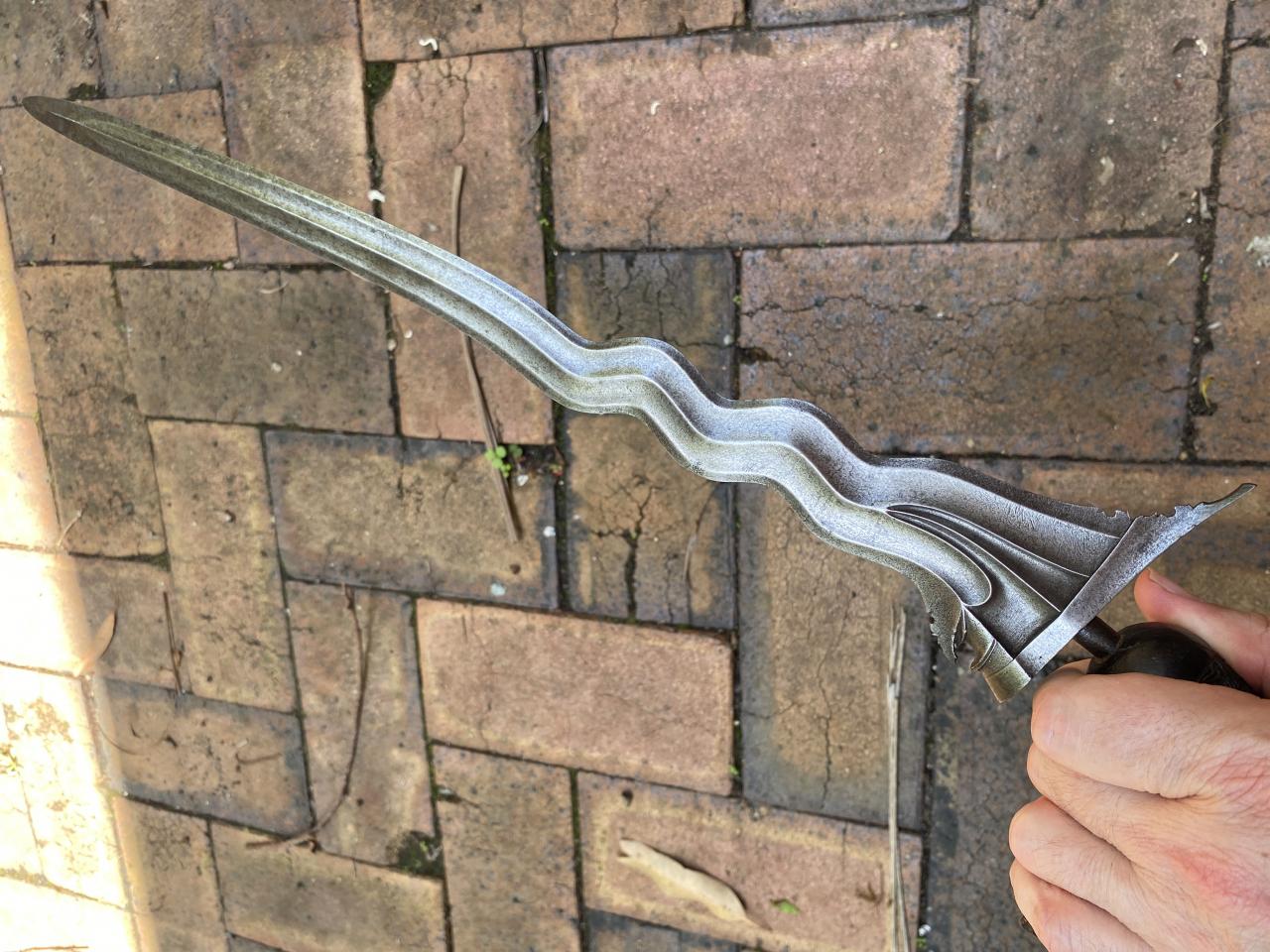

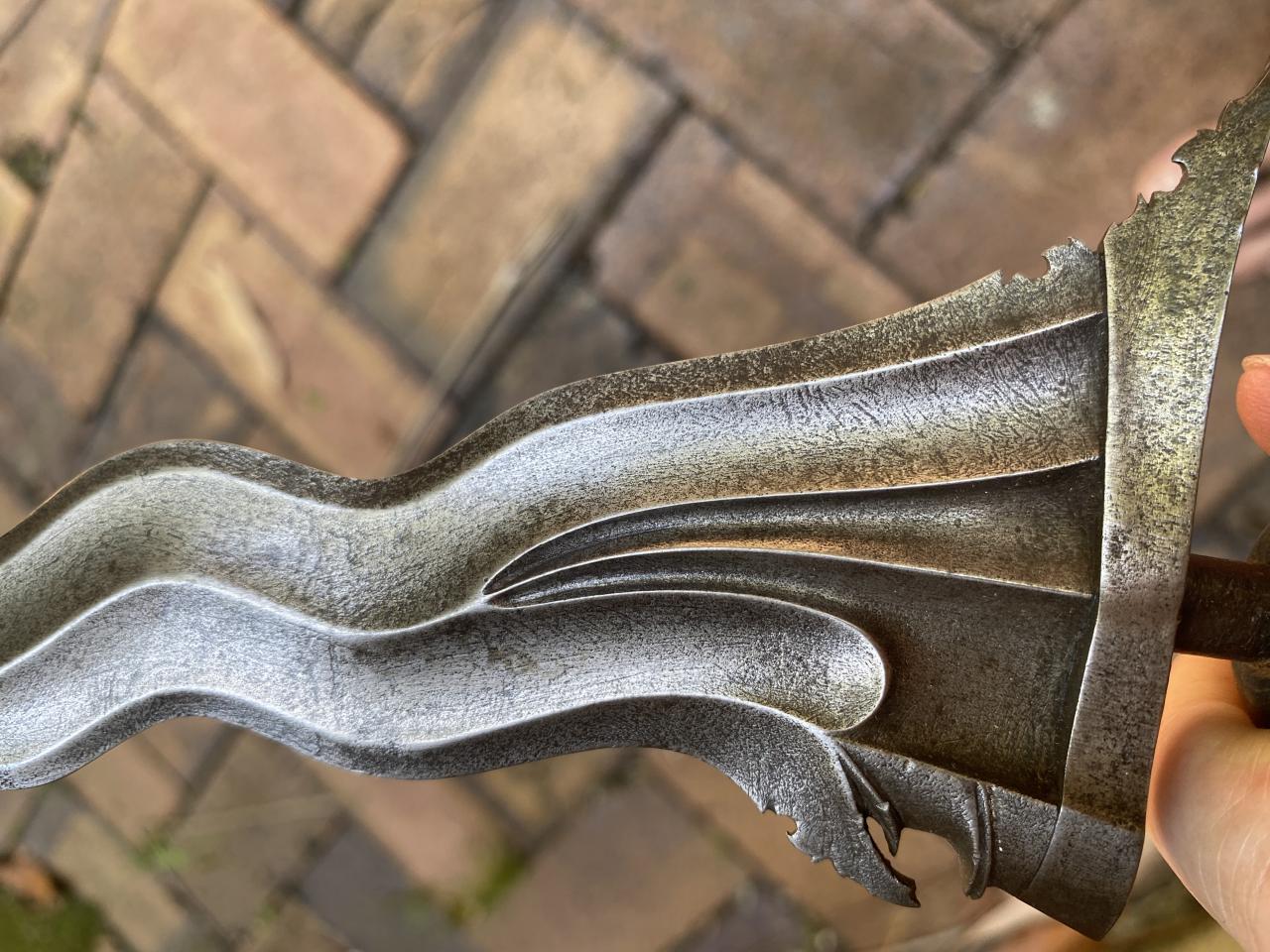

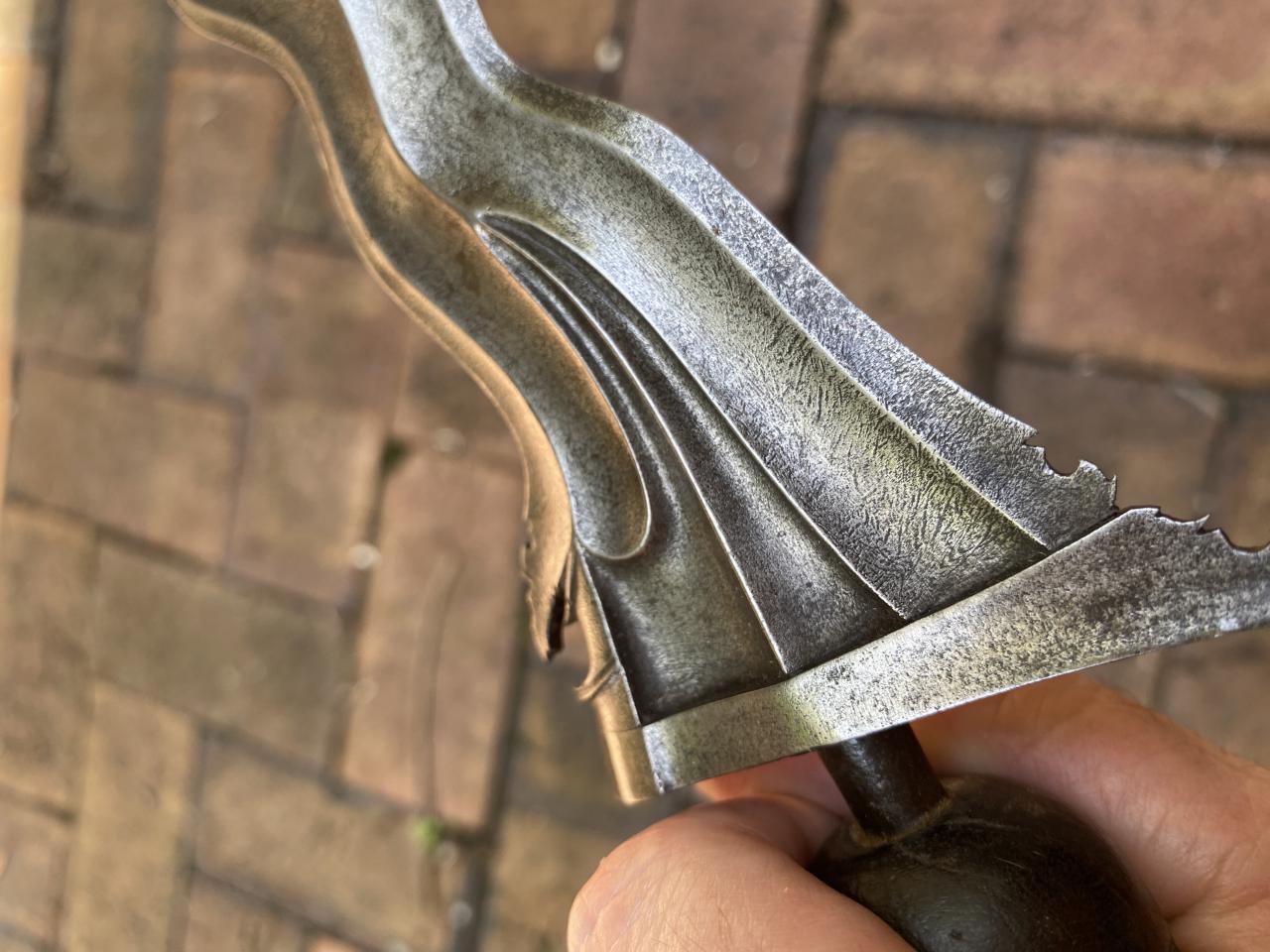

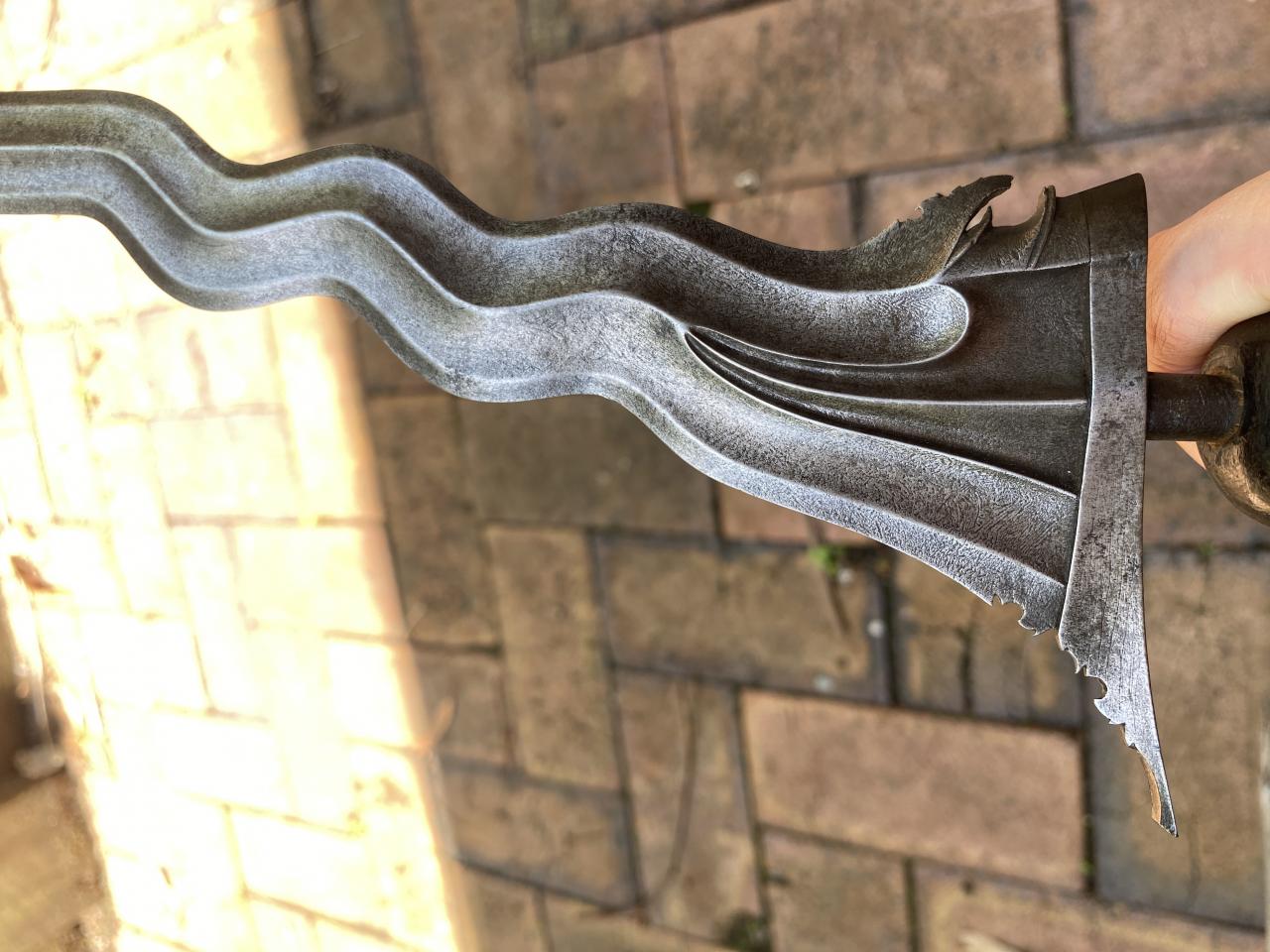

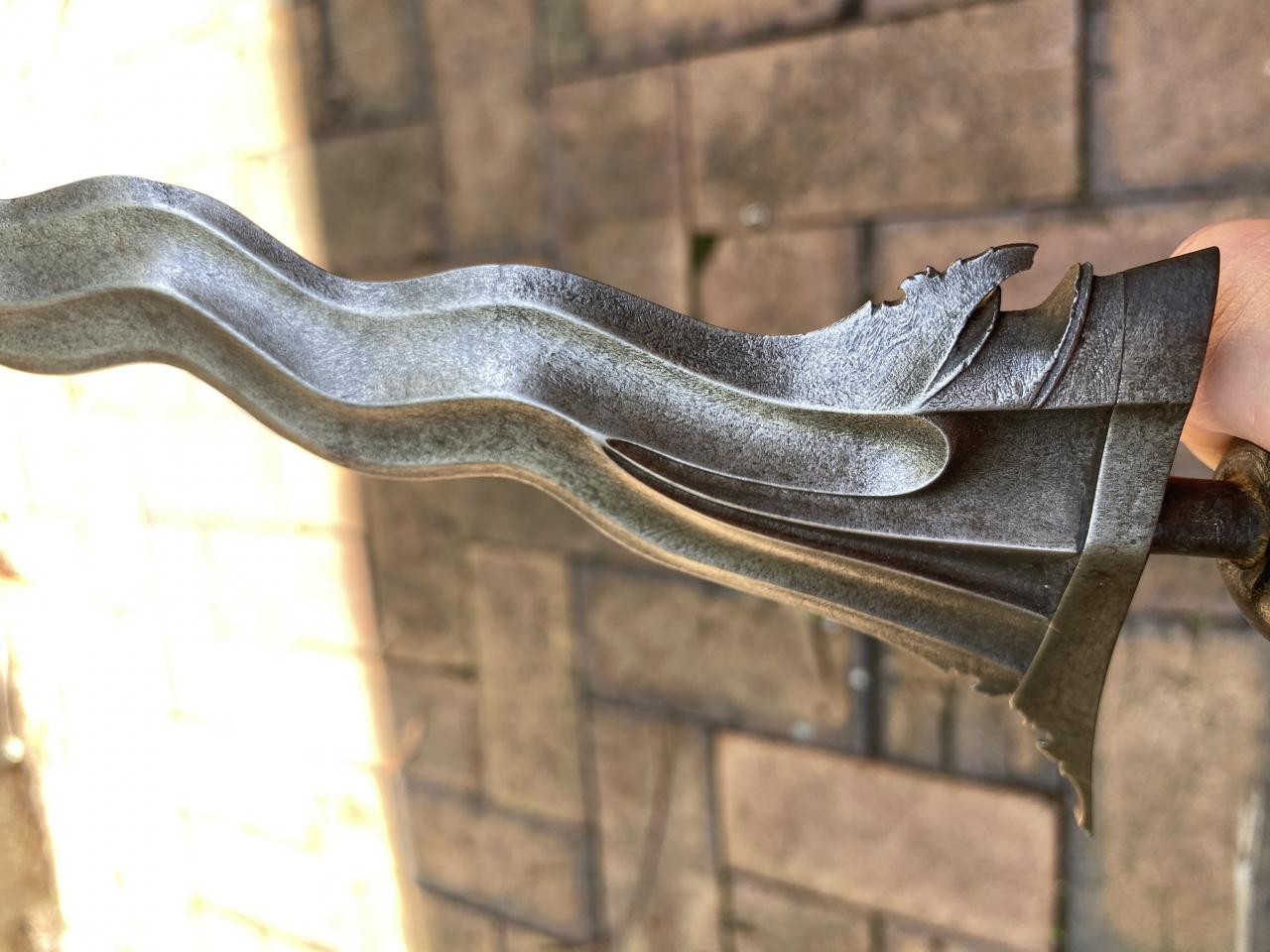

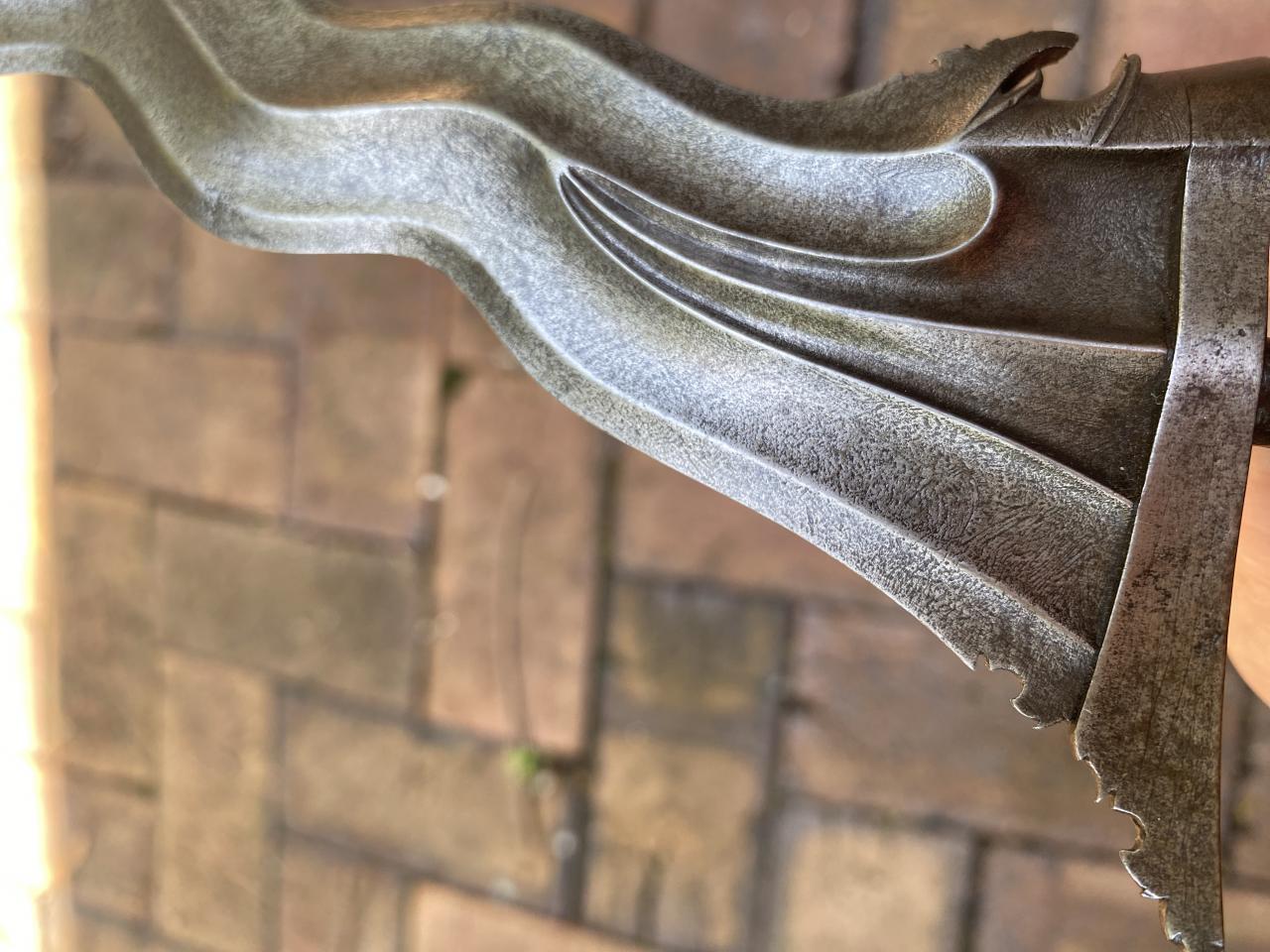

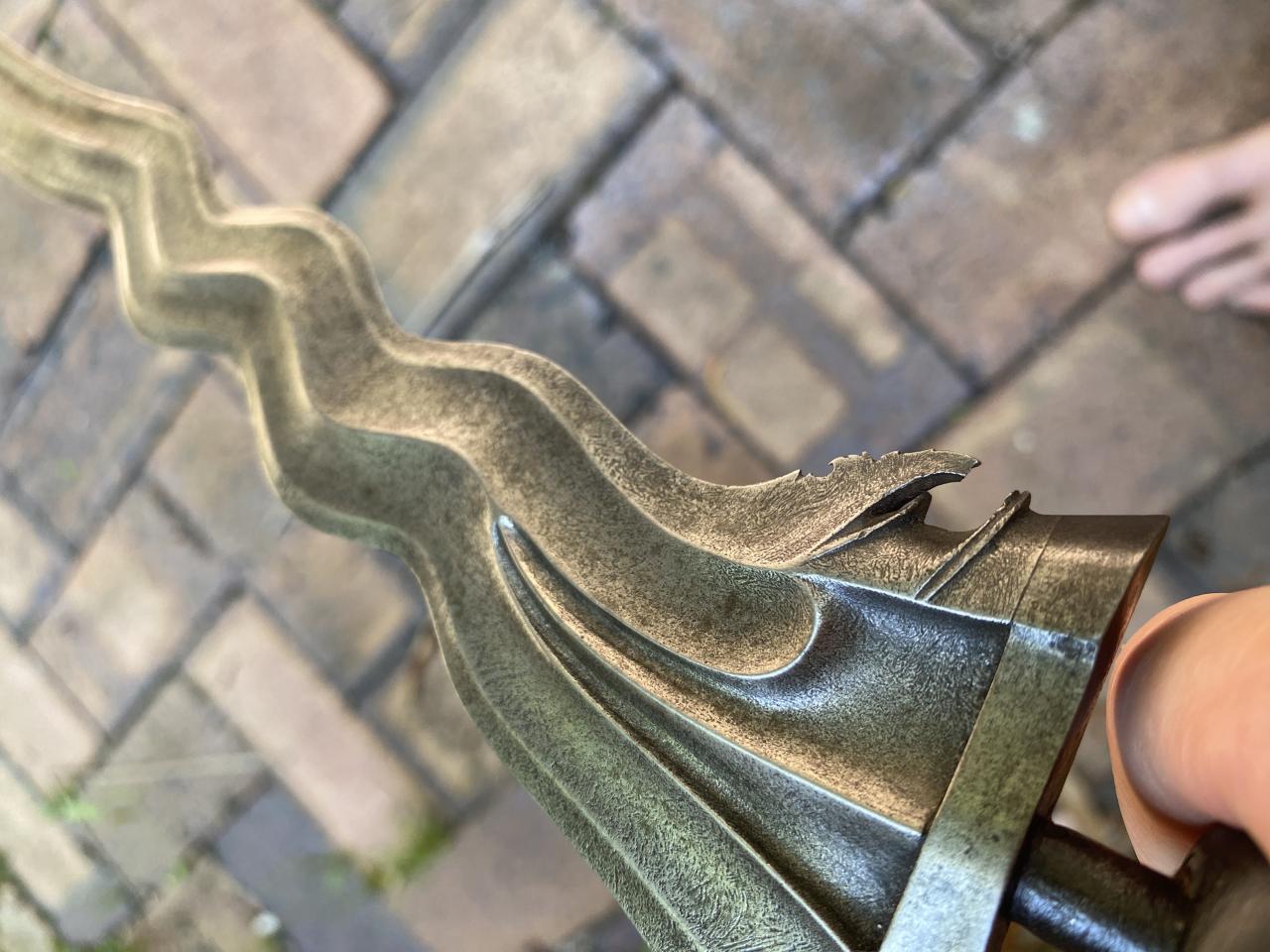

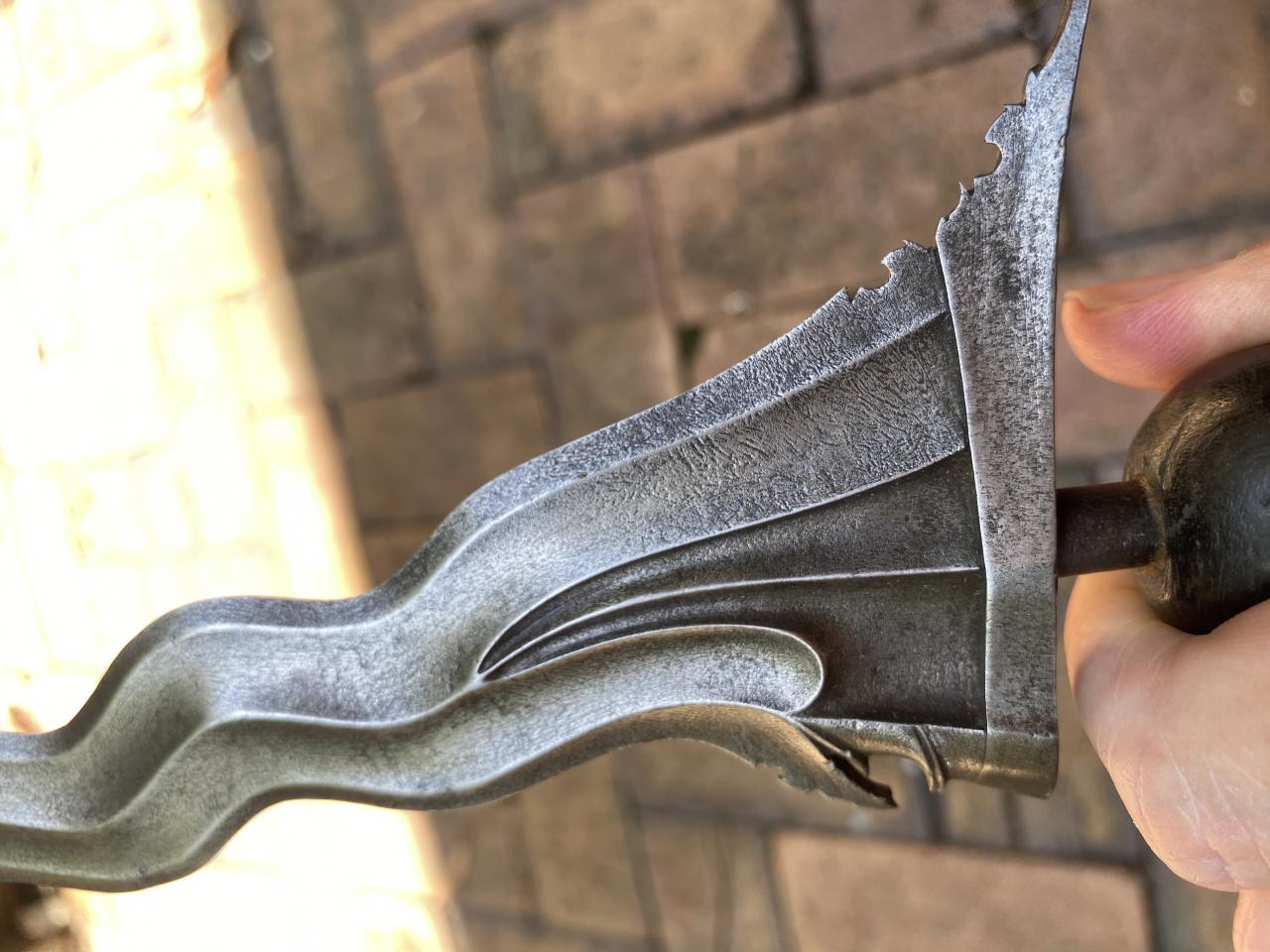

Is anyone willing to venture an opinion on the swirly pattern evident in this Malela keris? Is this crucible steel, unlikely as the prospect of a wootz keris blade might seem?

Interested Party · Yesterday, 06:34 PM

I am no expert. My thoughts are maybe?, but I would think a high layer count mechanical damascus would be much more likely. Something similar to what the sides of high-end Japanese are constructed of. Either way I like it!

Can you see a temper line anywhere in the straight section?

A. G. Maisey · Yesterday, 11:11 PM

That is a very astute observation, IP.

Very.

Well done.

That thought never crossed my mind, but it should have.

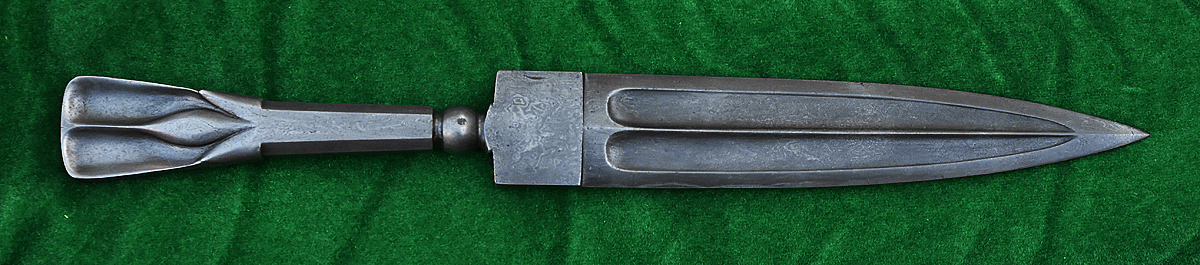

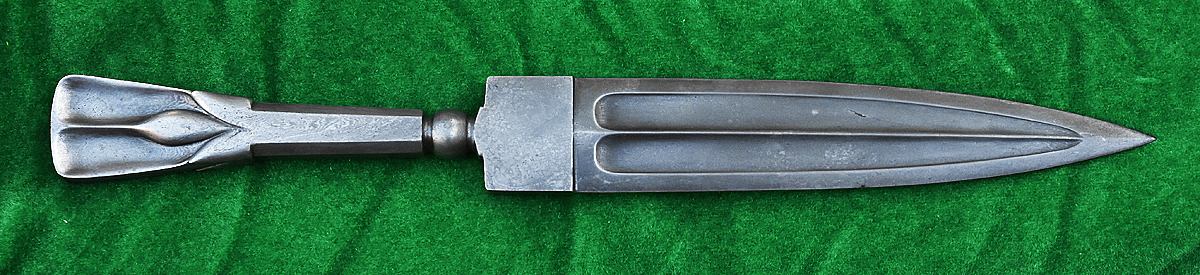

Here is are two photos of something I made, it has over 4000 nominal layers in it, no nickel, only wrought iron & 01(oil hardening steel #1). Both sides are shown. A three stack was folded & welded 12 times. It has been heat treated, oil quench, double draw.

This was stained with ferric chloride once, & has not been touched since. No etching, no repeat washings with acid, such as is done with a keris.

Imagine what this tight layering would have done to my blade if it had been treated like a keris.

Yes, I do believe that the answer is multiple folding & welding; probably made necessary because the material from which it is made required a lot of washing --- "washing" = folding and welding in the forge to remove impurities prior to forging into a billet that can then be forged to shape prior to cold work taking place.

I've played with the photo a bit so that the grain in the metal can be seen, it is a handheld snapshot, it might be seen better if I had photographed it in a different way.

jagabuwana · Today, 03:13 AM

Hello, Adam - nice keris! Thank you for sharing.

Hello, Alan:

- From what you and IP have said, it seems like the effect on Adam's keris could be produced by arranging the layers as you would for pamor wos wutah, but folding many more times to create a denser pamor which might look like wootz. Am I understanding correctly? If so, would this still be called pamor urab urab as opposed to wos wutah, or does pamor UU refer specifically to something with wootz construct?

- If this keris were in your hand, how would you identify whether it is crucible or forge welded?

- From previous discussions in this forum I've gathered that a whole-wootz keris is exceedingly rare. But if they were more common, would you be any more inclined to think that this is made of crucible steel?

- To my eye this keris appears have no slorok. If I'm right is that a relevant factor in this discussion?
