#1 |
Member
Join Date: Apr 2014
Posts: 233
|
![]()

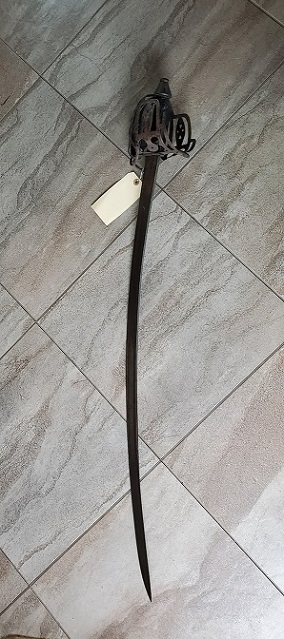

Just got this in. It has a couple qualities that suggest some history.
|
![]() |
![]() |
![]() |
#2 |
Arms Historian
Join Date: Dec 2004
Location: Route 66
Posts: 10,369
|
![]()
Did someone say history?

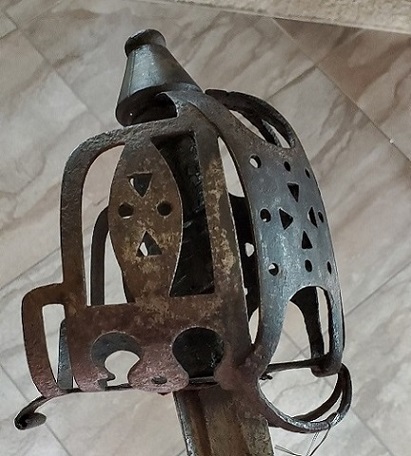

![]() Yes, this is a great example of the munitions grade basket hilts issued to some of the Highland Regiments of the British army in mid 18th c. among them the "Black Watch". This is a standard type hilt which appears to be of the crude type produced by Nathaniel Jeffries and Dru Drury of London, though it is possible Harvey and perhaps Dawes of Birmingham 'may' have produced some later. ] The pommel capstan style here is consistent with the Drury examples, and though he worked as partner with Jeffries the pommel capstan differences are virtually the only distinguishing thing apparent. According to information from "Swords for the Highland Regiments 1757-1784" Anthony Darling, 1988. It seems though that most of these swords were produced in 1770s ending in 1784 (by Drury by then) when privates in infantry ceased carrying swords. The 'Black Watch' was basically a unit of 'watch' companies ordered in 1725 by George I to patrol the Highlands clans and enforce the proscription of arms, and any sort of 'disturbances'. There were originally 6 with 4 more added later. The term 'Black Watch' was of course never used until Victorian times, until then they were 42nd Highland Regiment (the 43rd until 1749). Darling indicates that there were independent companies of Highlanders previous to this organizing and that they carried basket hilts they had supplied personally, whether any distinct form unknown. By 1759, it is noted that it was ordered that swords issued to privates were to be 'lettered and numbered', ("Soldiers in America" Don Troiani), for example (in this case the Highland Regiment 42/A/35) thus A=first company; 42=Highland Regiment; 35= private #35. The first company battalions were letters A through K; the second K-Z (?) It does not indicate however where these were marked. Typically it seems the guard was the field for such administrative marks. Also the blades, it seems typically German, were stamped with crown over GR. Jeffries and Drury usually marked their name on the blades. While these style hilts are shown in "Scottish Swords from the Battlefield at Culloden" (Mowbray, 1971) a transcript of the Lord Campbell work of 1894, these are two of these type, but only presumed to be from Culloden. There is no evidence these are actually from the battle, and these hilts do not seem to have been that early (1746). I have one of these (attached) which has been remounted with a M1788 light cavalry saber blade, and I have seen two others over the past 4 decades also with such blades. It would appear that a number of these which had been placed in stores were remounted, reason or distribution unknown, but with these blades becoming the type known with Scots as 'turcael' (with curved blade). The other pic is a British dragoon basket hilt with number on pommel, same period, so it would seem the pommel was in cases a proper location, and quite likely in field application. Pommels were easily changed out so it seems to make sense with issued weapons. |
![]() |
![]() |
![]() |
#3 |
EAAF Staff
Join Date: Dec 2004
Location: Louisville, KY
Posts: 7,299
|
![]()
I agree JIm. I didn't think that this form would be from the Battle of Culloden since they were from 1778 on.....
|
![]() |
![]() |
![]() |
#4 | |
Arms Historian
Join Date: Dec 2004
Location: Route 66
Posts: 10,369
|
![]() Quote:
Thank you Jose, I admit of course that in researching I had sort of hoped to stretch the terrminus ante quem back to that time, but the earliest I can discover on these conical pommel munitions grade examples is 1750s. It is possible that Birmingham maker Samuel Harvey might have made them in that time but so far it is only Jeffries c.1757. Dru Drury (also of London) seems to have partnered with him and the examples mostly seen are 1760s-70s. Before 1757 there are no real records of what kinds of swords were used by the 'government' troops of Scots, who supplied their own swords (Darling, 1988). |
|
![]() |
![]() |
![]() |
#5 |
Member
Join Date: Dec 2004
Location: NC, U.S.A.
Posts: 2,176
|
![]()
This really is a great example of a Black Watch basket and I've always wanted to add one of these to my collection to represent the many Scots who came to the U.S. and fought with these during the French and Indian War and American Revolution. Many of the Scottish who moved to eastern North Carolina took part in the Battle of Moore's Creek not too far from me. It is said that during the French Indian campaign (ca. 1759-60), the Scots chose to carry their basket hilts and a tomahawk axe as opposed to a musket and bayonet as most of the other troops did.
This pattern is definitely post Culloden, lacking the 'fishtail' decoration and merlons of the earlier baskets and the later post 1750 conical pommel versus the 'mushroom' shaped type from earlier as seen on Jim's example. What a great piece of history you have! Congrats! |
![]() |
![]() |
![]() |
#6 | |
Member
Join Date: Dec 2019
Location: Eastern Sierra
Posts: 504
|
![]() Quote:
|
|
![]() |
![]() |
![]() |
#7 |
Member
Join Date: Apr 2014
Posts: 233
|
![]()
Thanks everyone for all the information!
Jim, in reference to- "By 1759, it is noted that it was ordered that swords issued to privates were to be 'lettered and numbered', ("Soldiers in America" Don Troiani), for example (in this case the Highland Regiment 42/A/35) thus A=first company; 42=Highland Regiment; 35= private #35. The first company battalions were letters A through K; the second K-Z (?)" Would you be able to post a picture of this page? If that's not ok, could you possibly send it to me? I found another reference in this Morphys auction of them being marked but it specifically mentions it being done in New York. https://auctions.morphyauctions.com/...lot285996.aspx |
![]() |
![]() |
![]() |
#8 |
Member
Join Date: Apr 2014
Posts: 233
|
![]()
Adding more interest to its past, it appears the crown/ Drury blade marks that are typical have been ground off and removed from mine. It doesnt appear well in pictures but there is an indentation where the marks were on each side. If you look closely, you can see where the fuller gets narrower and shallower and the top ridge wider. All from metal being removed in those areas. Seeing that crown must not have sat well with it's owner at some point in time.
I assume this was probably somewhat common of British marked items? |
![]() |
![]() |
![]() |
#9 |
Member
Join Date: Apr 2014
Posts: 233
|
![]()
A paper I found on the Scottish regiments during the French and Indian War. Long but LOTS of information. Thought it fit well here as a good resource.
https://thekeep.eiu.edu/cgi/viewcont...context=theses |
![]() |
![]() |
![]() |
#10 |
Arms Historian
Join Date: Dec 2004
Location: Route 66
Posts: 10,369
|
![]()
As per your request,
From "Soldiers in America 1764-1865", Don Troiani, 1998, p.16. It does not seem unlikely that a colonist would grind away any reference to the 'Crown', and of course many British weapons became those of the Colonial army during and after the Revolution. |
![]() |
![]() |
![]() |
#11 |
Arms Historian
Join Date: Dec 2004
Location: Route 66
Posts: 10,369
|
![]()

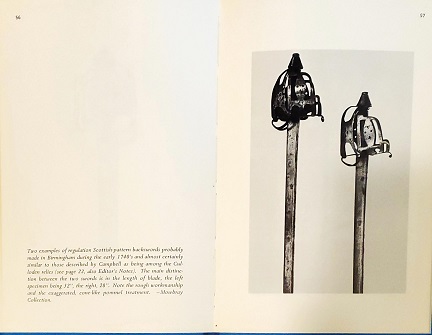

In reviewing "Scottish Swords from the Battlefield at Culloden", Lord Archibald Campbell, 1894.....reprinted Andrew Mowbray, 1971.

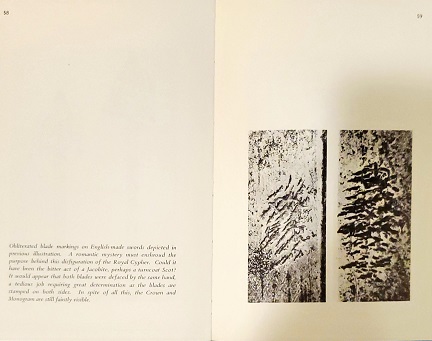

I noted that it is suggested that two of these munitions grade hilts may have been among those of the 190 swords retrieved on the Culloden field. (p.22) On p.10, (Mowbray)"...around 1740, Drury, Jeffries, Harvey and perhaps others accepted contracts from the English government to produce swords of the Highland pattern". These are described as cheap, but serviceable blade stamped with GR and crown, in rough approximation of Glasgow styling. ...."it is almost certain that Campbell was referring to two of these blades being among his Culloden group". Campbell acquired about 137 blades which had been fashioned into a travesty of a fence on an English estate, comprised of the blades of the Jacobite swords recovered from Culloden. This 'Twickenham' disgrace had dismounted the blades, which were of the varied forms of Solingen blades including ANDREA FERARAS. It would seem possible that these two basket hilts of English munitions grade might have been in Jacobite hands, thus the defaced royal cyphers. There were basket hilts in simpler forms like this with the various Highland units formed by the British army as early as 1709. The Black Watch from about 1740 (then known as 43rd). While "Swords for the Highland Regiments" (A. Darling, 1988) suggests these tall cone pommel munitions grade basket hilts were likely from a contract of 1759 from unnamed contractor, but Jeffries comes up c1768 or before. The example I have is with the familiar hilt, but unmarked. It has been refitted in its working life with a M1788 light cavalry saber blade. This is likely from after these were returned to stores when the infantry ceased carrying swords in 1784. While there is no certainty of how this amalgamation took place, I have seen only one other example (Pat Tougher, 1994) with another I cannot specifically recall. While interesting, it is unfortunate as without the original blade cannot determine more on dates etc. Last edited by Jim McDougall; Today at 03:21 AM. |
![]() |
![]() |
![]() |
|
|
