ALGERIAN MIQULET FOR COMMENT

Miqueleter · 11th December 2016, 09:51 AM

I am solidly with Fernando K on this one, that is, this lock is a "stretched" agujeta lock, a type of lock probably born in Brescia, copied in North Africa, may or may not have preceded the classic patilla miquelet, but certainly ended up as the "romanlock". This lock appears to be missing the "catch" part of the back catch to the hammer, which leaves the lock with only one precarious full cock bent/notch/choke.

Kubar hinted that the lock may have come from Holland. Maybe so. The N. African model of the snaphance most likely came from Holland, as well as other European manufacturers for the North African trade, some locks and such for ransom payments and just plain commerce. No dispute on that, per Elgood. Just sayin'

At any rate, nice find. Respectfully, Jw

Fernando K · 11th December 2016, 10:29 AM

Miqueleter

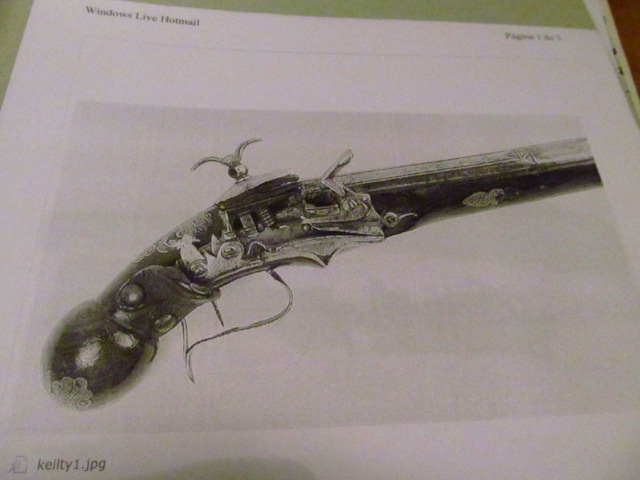

The lock of "agujeta" called by the Spaniards also "lock of transition" also influences to the lock of Ceylan, via Portugal

Fernando K

BANDOOK · 12th December 2016, 10:06 AM

THANKS FERNANDO K,MIQUELTER J.K ,KUBUR,IBRAHIIM,RICK

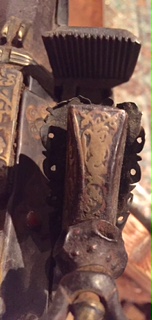

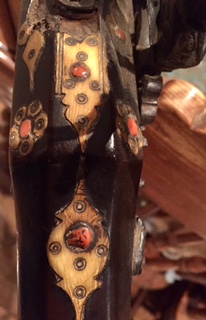

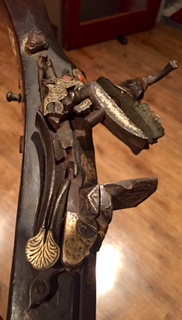

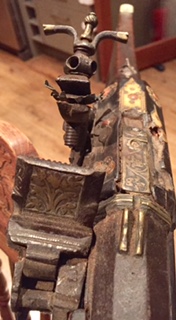

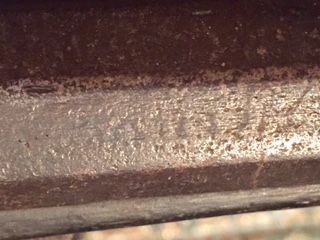

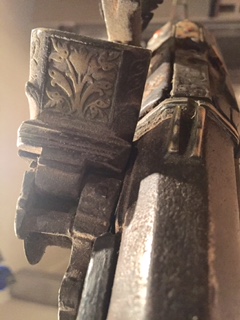

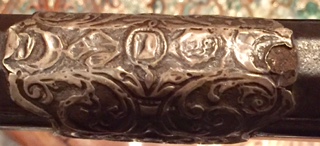

SOME MORE PICTURES AS PROMISED AS GUN IS IN MY HAND NOW
MANY THANKS RAJESH

Fernando K · 12th December 2016, 01:45 PM

Hello, Bandook

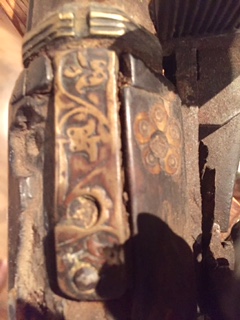

It seems to me that the end of the royal pier has broken. It's like this

Fernando K

BANDOOK · 12th December 2016, 08:40 PM

HI FERNANDO NO PICTURE TO SHOW AN EXAMPLE,REGARDS RAJESH

rickystl · 17th December 2016, 06:46 PM

Hi Rajesh.

Thanks for the additional photos. It looks like a nice piece, that should clean up well with a little work.

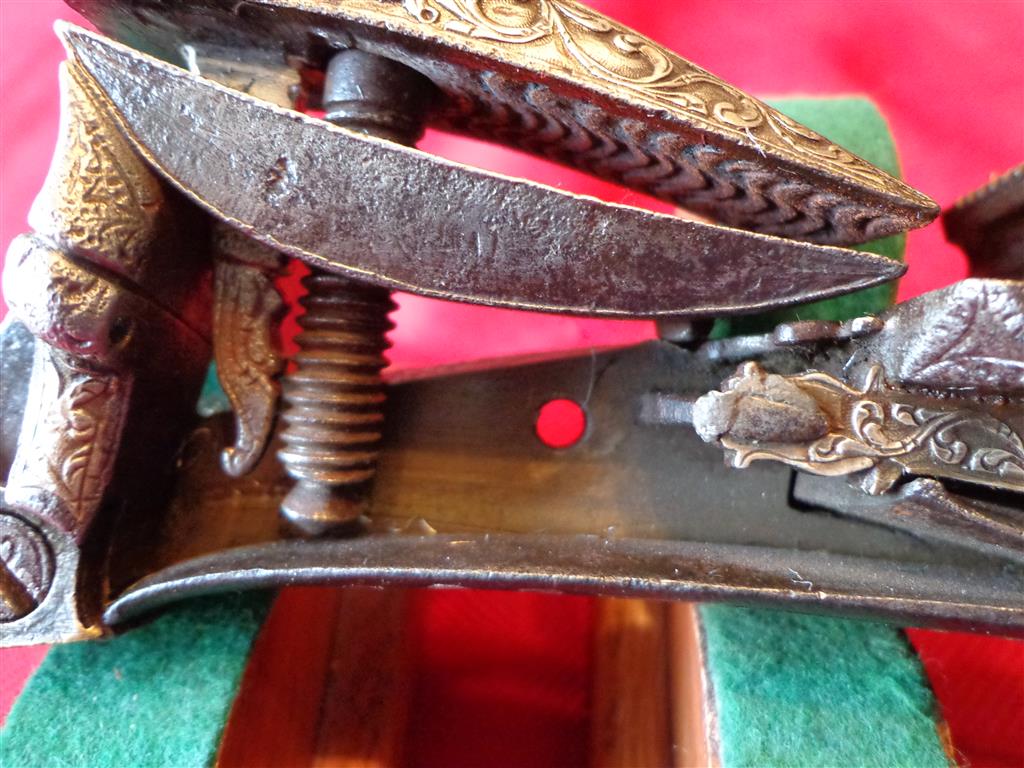

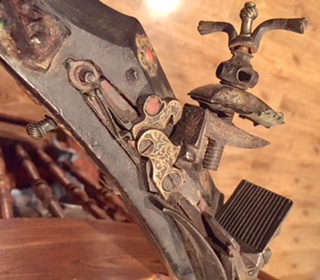

After looking further, it does appear Fernando K is correct. It seems a tiny piece of the brass covered support plate, just in front of the screw, is broke. But the mainspring does not rest on this piece. It rests on the toe of the hammer. See photo below. The mainspring does not "appear" to be broke. Possibly someone was trying to do some type of repair, but did not really know what they are doing (?) Hopefully, there is a gunsmith in your area that is familiar with the early guns/locks. You would be surprised at how many modern gunsmiths are not. If you can't locate one, send me a PM.

Rick

rickystl · 17th December 2016, 06:48 PM

Woops. Forgot to post the photo.
